Because of the MC68000's autoincrementing and autodecrementing addressing
modes, this CPU has effectively, eight stack pointers (A0-A7). The address
register A7 is singular in the sense that when a return from a subroutine
the return address is saved at the top of the stack pointed by A7.
The stack pointer in MC68000 always points to the last element placed
in the stack and it grows to the bottom of the memory. Therefore, before
each push in the stack the stack pointer is decremented and after each
pop the stack pointer is incremented. The value of the increment or decrement
depends on the instruction. For example, a MOVE.L (A7)+,D3 , which is a
pop of the stack, will increment the stack pointer in 4 bytes, while the
MOVE.W D3, -(A7), which is a push to the stack, will decrement the

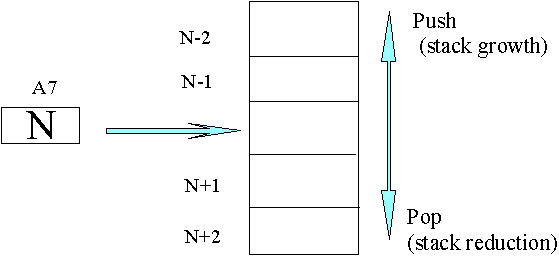

stack pointer in 2 bytes. Figure 1 gives a graphical representation of
the stack.
fig. 1
